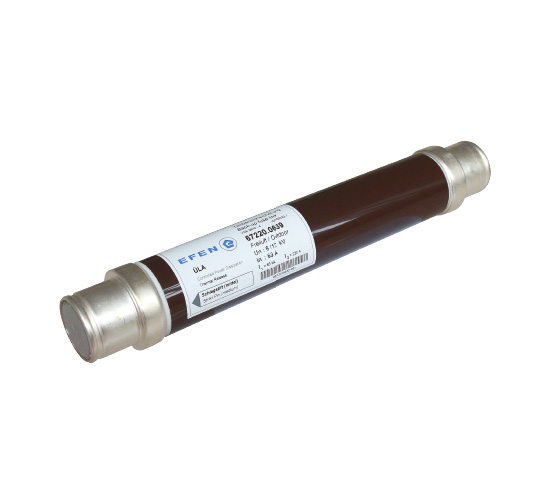

High-voltage fuses: 1. Protect the operation of transformer; 2. Good current-limiting characteristics and good breaking capacity; 3. Relatively small size.
| Order no. | Rated volatage range | Rated current | Ratde maximum breaking current | Rated minimum | dimensions | Resistances and power dissipation | Toral 12t | Weight | Pack | ||
| breaking current | |||||||||||
| Un | In | I1 | I3 | e | d | Rkalt | Pwarm | A2s | Kg | ||
| kV | A | KA | A | mm | mm | mΩ | W | ||||
| 67220-0019 | 6/12 | 1 | 63 | 1 | 292 | 56 | 1500 | 1.6 | 90 | 1.6 | 1 |
| 67220-0029 | 2 | 2 | 510 | 2 | 280 | ||||||
| 67220-0049 | 3 | 3 | 338 | 6 | 500 | ||||||
| 67220-0069 | 6.3 | 6.3 | 190 | 8 | 600 | ||||||
| 67220-0109 | 10 | 10 | 139 | 16 | 1150 | ||||||
| 67220-0169 | 16 | 16 | 107 | 38 | 1290 | ||||||
| 67220-0209 | 20 | 20 | 71 | 38 | 3200 | ||||||
| 67220-0259 | 25 | 25 | 52 | 46 | 5200 | ||||||
| 67220-0329 | 31.5 | 31.5 | 43 | 65 | 7200 | ||||||
| 67220-0409 | 40 | 40 | 23 | 54 | 23300 | ||||||
| 67220-0509 | 50 | 50 | 18 | 70 | 34900 | ||||||
| 67220-0639 | 63 | 63 | 12 | 85 | 58300 | ||||||
| 67220-0809 | 80 | 80 | 65 | 10.6 | 114 | 90000 | 2.1 | ||||
| 67220-1009 | 100 | 100 | 8.5 | 156 | 140000 | ||||||
| 67220-1259 | 125 | 125 | 88 | 4 | 117 | 440000 | 3.7 | ||||
| 67220-1609 | 160 | 160 | 4.3 | 217 | 500000 | ||||||
| 67220-2009 | 200 | 200 | 3.8 | 333 | 654000 | ||||||
| 67240-0019 | 6/12 | 1 | 63 | 1 | 442 | 56 | 2100 | 2 | 90 | 2.3 | 1 |
| 67240-0029 | 2 | 2 | 800 | 3 | 340 | ||||||
| 67240-0049 | 4 | 4 | 550 | 10 | 450 | ||||||
| 67240-0069 | 6.3 | 6.3 | 300 | 13 | 530 | ||||||
| 67240-0109 | 10 | 10 | 220 | 26 | 940 | ||||||
| 67240-0169 | 16 | 16 | 197 | 73 | 1400 | ||||||
| 67240-0209 | 20 | 20 | 134 | 76 | 3100 | ||||||
| 67240-0259 | 25 | 25 | 96 | 89 | 4500 | ||||||
| 67240-0329 | 31.5 | 31.5 | 79 | 127 | 5900 | ||||||
| 67240-0409 | 40 | 40 | 45 | 114 | 18800 | ||||||
| 67240-0509 | 50 | 50 | 35 | 147 | 33500 | ||||||
| 67240-0639 | 63 | 63 | 24 | 170 | 59600 | ||||||
| 67240-0809 | 80 | 80 | 65 | 20.5 | 233 | 84000 | 3.1 | ||||
| 67240-1009 | 100 | 100 | 78 | 18 | 400 | 93600 | 4.1 | ||||
